In renewable energy generation, industrial energy storage, and high-power conversion systems, the high-frequency inverter transformer serves as a critical component for power conversion and electrical isolation. It directly dictates the efficiency, stability, and power density of the entire system.
Today, we take an in-depth look at a specific industrial-grade unit-25002-INV-12KW (MS 2509)-to analyze its key design highlights, material selection, and practical application scenarios.
Key Takeaways
Featuring a 12kW-class high-power-density design, this transformer integrates compact dual-wound copper wire coils, 4-pin high-conductivity terminals, and a high-performance ferrite core. It offers exceptional high-frequency conversion efficiency alongside robust thermal management for solar inverters and energy storage systems.
1. Core Specifications & Physical Design
Structurally, this transformer employs a modular vertical pin/blade configuration, engineered to prioritize electrical insulation and mechanical rigidity.
| Specification Item | Description / Technical Feature |
|---|---|
| Product Name | High-Frequency Inverter Transformer / Isolation Transformer |
| Model / Part No. | 25002-INV-12KW / MS 2509 |
| Power Rating | 12kW Class (High Power Density Design) |
| Terminal Structure | Base-mounted 4-pin Solder/Plug-in High-Conductivity Copper Terminals |
| Protection Features | Insulated Substrate + Dual-side High-Density Shock-Absorbing & Heat-Insulating Foam |
2. Internal Material Selection & Engineering Details
To ensure low losses and high reliability under heavy 12kW operating conditions, several refined engineering choices were implemented in its construction:

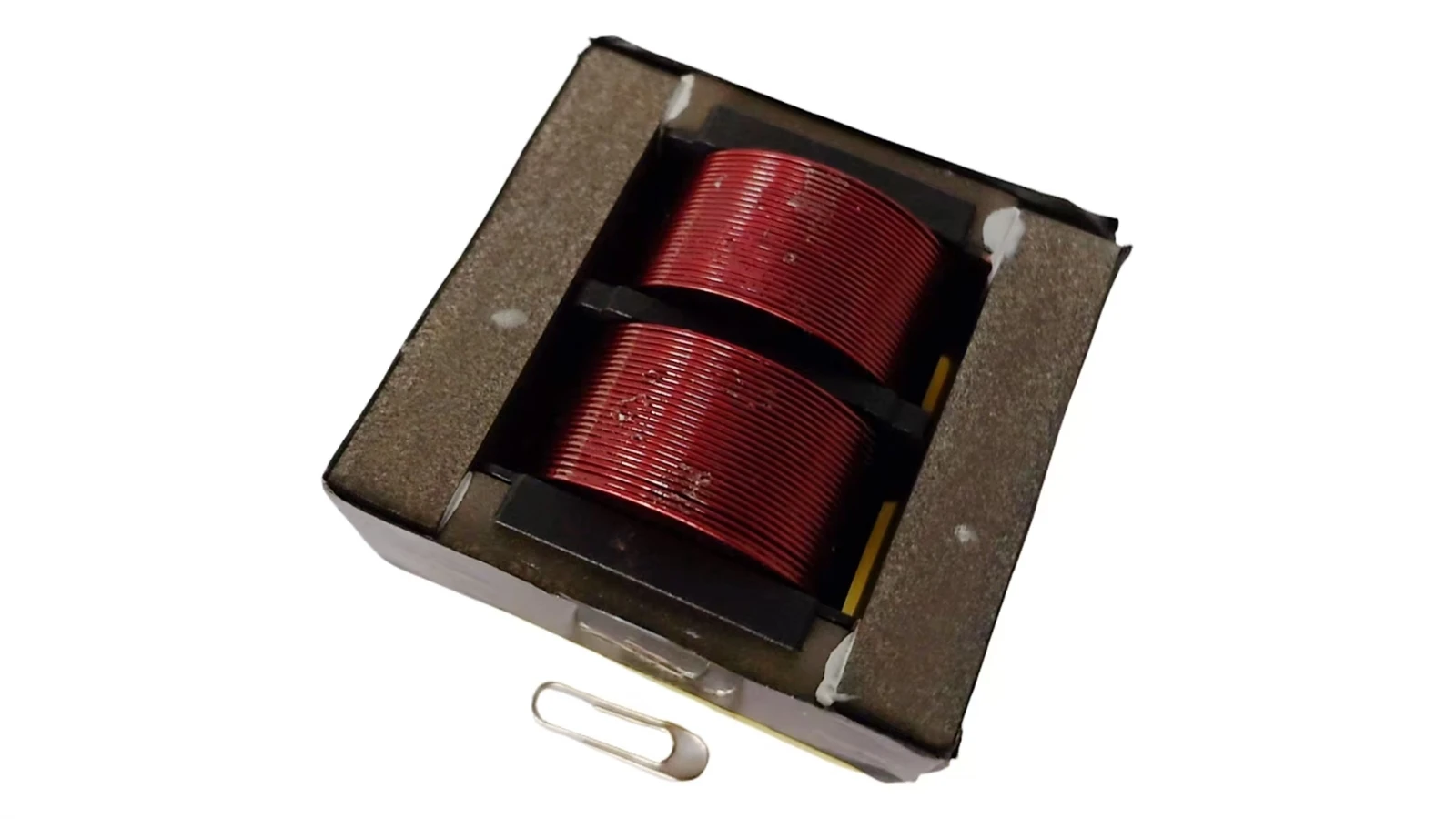

Dual-Wound Enameled Copper Wire
Uses high-temperature resistant enameled copper wire configured in a dual parallel winding structure. This effectively increases current carrying capacity while significantly mitigating skin effect and proximity effect losses at high frequencies.
High-Performance Ferrite Core
The core magnetic path utilizes high-frequency, high-flux-density ferrite core material wrapped tightly with high-grade thermal insulating tape to minimize magnetic leakage and boost electromagnetic conversion efficiency.

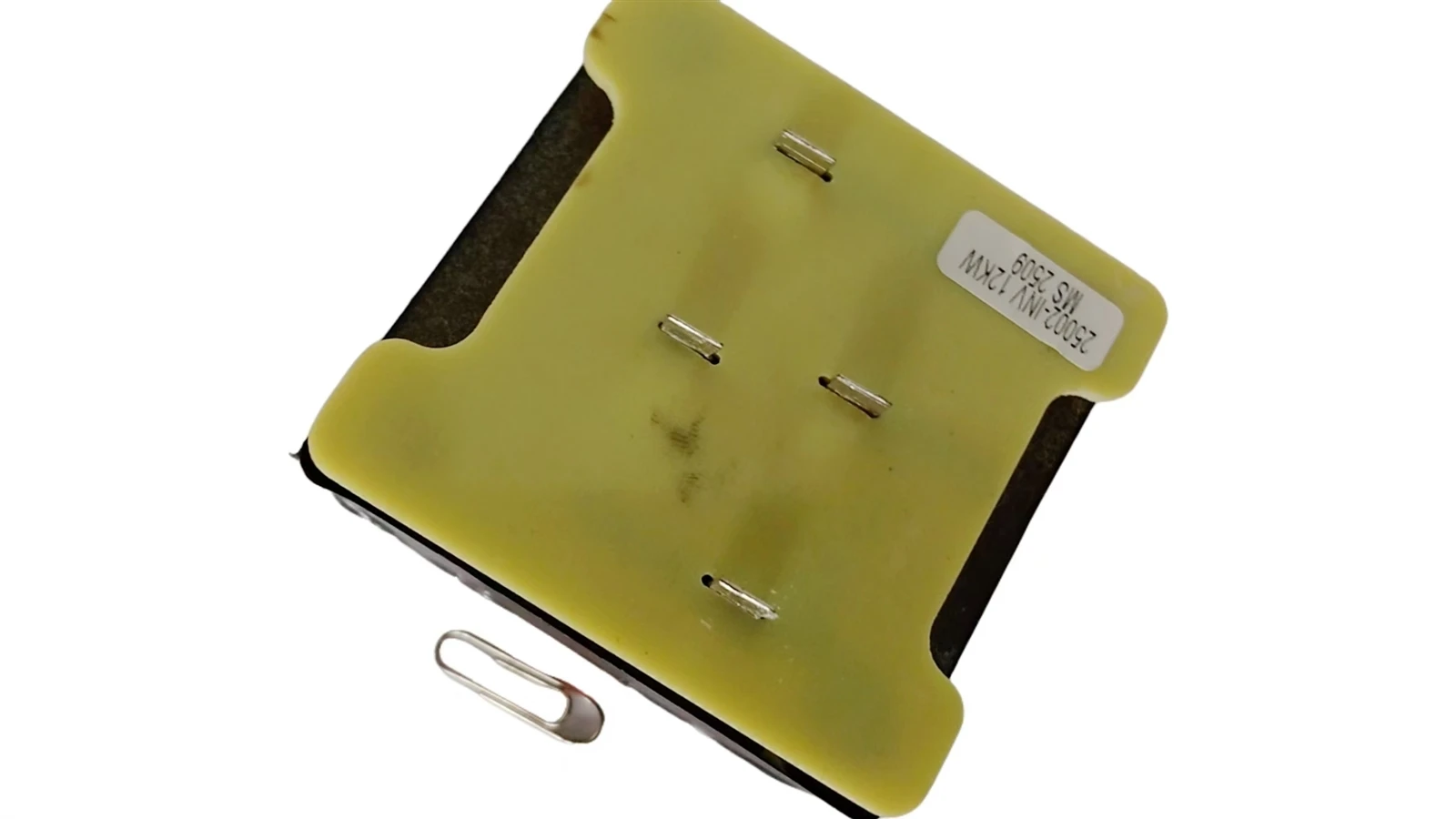

Insulated Base & 4-Pin Terminals
The base utilizes a high-temperature FR-4 / engineering plastic insulating plate featuring 4 symmetrically arranged tinned/silver-plated brass blade terminals, ensuring high mechanical strength and reliable electrical contact.
Thermal Management & Vibration Control
Convective air gaps are maintained between the windings and outer frame, complemented by black high-density shock-absorbing and thermal foam to dampen high-frequency acoustic noise and cushion the core against impact.
3. Typical Application Scenarios
Leveraging its 12kW high-power capacity and high-frequency isolation performance, this transformer is widely utilized across the following power electronics applications:
Solar Inverters: Acts as a central step-up/isolation component in string or central solar inverters, delivering efficient DC-to-AC power conversion.
Energy Storage Systems (ESS): Deployed in commercial, industrial, and residential Power Conversion Systems (PCS) to guarantee stable energy transfer during battery charging and discharging cycles.
High-Frequency Online UPS: Provides critical power isolation and high-efficiency voltage transformation for data centers and industrial uninterruptible power supplies.
EV Charging Infrastructure & DC-DC Modules: Performs key high-frequency power transformation tasks in DC fast chargers for electric vehicles.
4. Conclusion
In summary, the 25002-INV-12KW high-frequency inverter transformer is a robust industrial-grade component combining high power density, stringent insulation protection, and effective thermal management. Through its optimized copper windings and ferrite core topology, it delivers a highly reliable and efficient power conversion solution for clean energy and industrial power systems.
